SUGON Hot Air Rework Station LED Display Temperature Adjustable Soldering Station With 5 Nozzles, EU Plug, Model: 2020D

SUGON Hot Air Rework Station LED Display Temperature Adjustable Soldering Station With 5 Nozzles, EU Plug, Model: 2020D

Regular price $171.92 USD
Regular price Sale price $171.92 USD
Sale Sold out
Shipping calculated at checkout.

8610DX:
1. There are four working channels: CH1, CH2, CH3, CH4,the air volume and temperature of each channel can be set and stored.
2. It has a variety of protection functions and perfect button functions.
3. Convenient real-time operation, with magnetic switch control
4. With automatic sleep function, parameters can be adjusted in sleep state set up.
5. Sensor closed loop, microcomputer zero crossing trigger temperature control, high power, fast heating, convenient temperature adjustment, accurate and stable, not affected by air output.
6. The brushless vortex fan is adopted, the air volume is adjustable, the range is large, and one machine can be used for multiple purposes.
7. The system is equipped with an automatic large air volume cooling function to extend the life of the heating element and protect the hot air handle.
8. Real-time Celsius/Fahrenheit temperature display function.
9. With temperature self-calibration function.
10. Temperature range: 100-500 degrees Celsius
11. Air volume stalls: 1-120 stalls
12. Dimensions: 188 x 245 x 135 mm
13. Weight: 4.25 kg
14. Power: 1000W

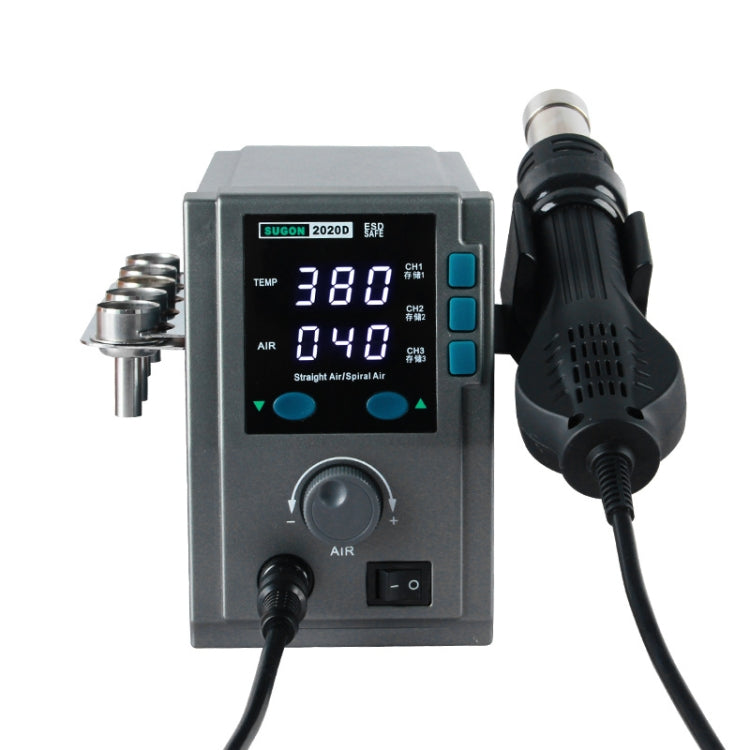

2020D:
1. Power consumption: 700w
2. Airflow type: soft wind brushless fan
3. Gas flow rate: 100 liters/minute
4. Temperature control range: 100-500 degrees Celsius / 212 -932 degrees Fahrenheit
5. Display form: digital LED
6. Handle component length: 120cm
7. Noise: less than 45 decibels
8. Sensor, closed circuit, microcomputer zero-pass trigger temperature control, LED display, high power, fast heating speed, accurate and stable temperature, does not affect the air volume, truly lead-free soldering iron.
9. The air volume is adjustable, the air volume is strong and the wind is soft, the temperature is easy to control, and it can be applied to a variety of purposes.
10. The handle is equipped with a sensor switch, which is convenient for real-time use
11. The system is equipped with an automatic air cooling function, which can prolong the service life of the heating element and protect the hot air gun.
12. This machine is equipped with safety protection function.
13. Conversion of Celsius and Fahrenheit temperature.
14. Calibration temperature function
Specification:
Package Weight
One Package Weight 3.40kgs / 7.50lb
One Package Size 28cm * 30cm * 23cm / 11.02inch * 11.81inch * 9.06inch
Qty per Carton 9
Carton Weight 30.00kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
Loading Container 20GP: 177 cartons * 9 pcs = 1593 pcs
40HQ: 412 cartons * 9 pcs = 3708 pcs
