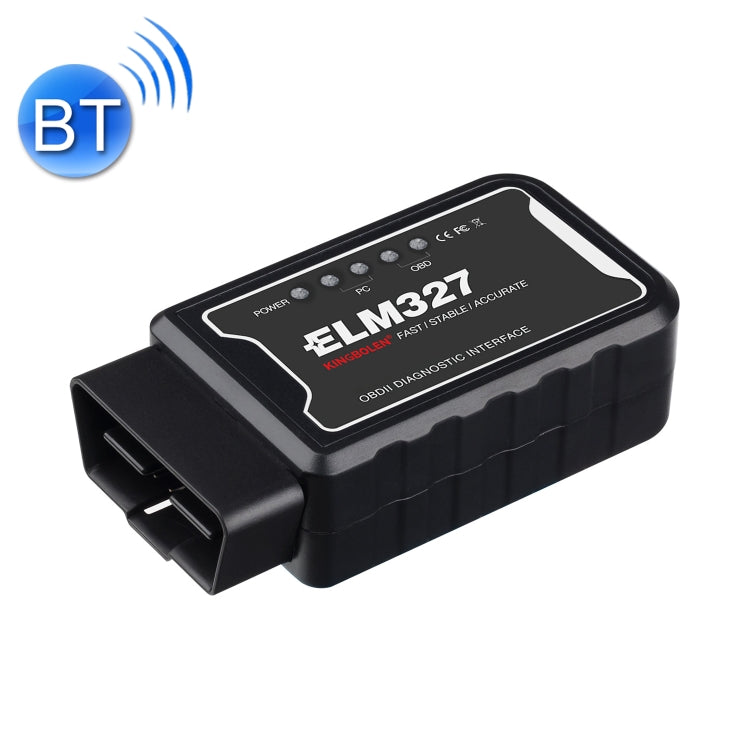

OBD II ELM327 Car Fault Diagnostic Tool V1.5PIC25K80 Chip

Features
1. Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1).
2. With chip: PIC18F25K80 ,supports all elm327 fucntions
3. ELM327 identifier,it shows full functions.
4. It understand commands such as ATPPS and other.
5. The frequency of the crystal oscillator is 4mHz.
6. Can read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Supported Protocol
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
