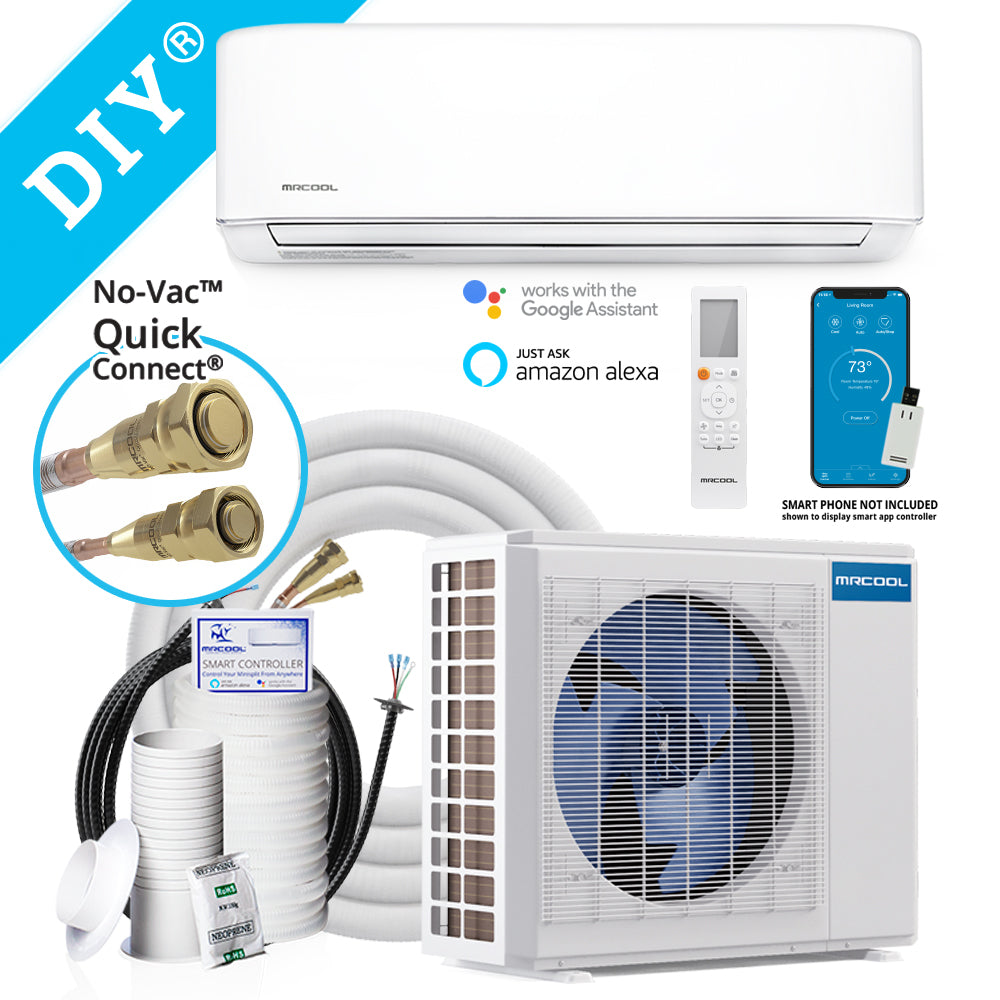

MRCOOL E Star DIY 4th Gen 9k BTU Ductless Mini-Split Air Handler 230V/60Hz

BRAND NAME MRCOOL
SERIES DIY 4th Gen Wall Mount Air Handler
MODEL DIY-09-HP-WMAH-230C
GTIN 00810063869533
UPC 810063869533
UNIT TYPE Mini Split
SHORT DESCRIPTION MRCOOL® E Star DIY 4th Gen 9k BTU Ductless Mini-Split Air Handler 230V/60Hz
LONG DESCRIPTION As part of a MRCOOL® DIY system, the MRCOOL® DIY 9K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 sq. ft. It is also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate. To take the simplicity of the installation even further, this air handler is designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. The line set is equipped with quick connectors which give a DIY installer the ability to connect the refrigerant piping with wrenches. The line set comes from the factory pre-charged with the correct amount of R-410A refrigerant, so no vacuuming is necessary. Let the MrCool 4th Generation 9K BTU Ductless Wall Mounted Air Handler all of the heating and cooling necessities of your home.
• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
• Compatible with Amazon Alexa and Google Assistant
• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
COOLING CAPACITY 9000 BTU
HEATING CAPACITY 9000 BTU
VOLTAGE 208-230 V
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER 15 A
MIN CIRCUIT AMPACITY 3 A
MOUNT TYPE Wall
COLOR White
COLOR FAMILY White
MAX COVERAGE AREA Up to 375 sqft
REFRIGERANT TYPE R-410A
DECIBEL RATING 35 dBA
DECIBEL RATING LOW 25 dBA
DECIBEL RATING HIGH 40 dBA
INVERTER Yes
LIQUID LINE SIZE 1/4 in
SUCTION LINE SIZE 1/2 in
BLOWER MOTOR RPM 1050/850/650
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Limited Lifetime Compressor
BASE WARRANTY 5-year Parts/7-year Compressor
BASE PARTS WARRANTY 5-year Parts
REGISTERED COMPRESSOR WARRANTY Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY 7-year Compressor
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
RESTRICTED STATES GU;PR;VI
NET DEPTH 7.44 in
NET HEIGHT 11.69 in
NET WIDTH 31.57 in
NET WEIGHT 23.81 lbs
GROSS DEPTH 16.34 in
GROSS HEIGHT 13.98 in
GROSS WIDTH 36.02 in
GROSS WEIGHT 34.39 lbs
